Khoom piav qhia
B2K Orbit Hydraulic Tsav kuj tseem hu ua BM5 Orbit Hydraulic Tsav nyob rau hauv peb lub hoobkas.B2K series lub cev muaj zog yoog raws qib siab Geroler teeb tsim nrog disc faib. Qhov kev hloov pauv yog los ntawm 80cc / r rau 490cc / r rau kev xaiv. Nws tuaj yeem ua tau raws li qhov yuav tsum tau muaj ntawm ntau yam khoom siv ceev thiab torques.
Cov yam ntxwv nta:
1. Cov cuab yeej tsim khoom siab tshaj plaws rau Geroler teeb uas siv lub zog qis ntawm kev pib, muab kev ua haujlwm du thiab txhim khu kev qha thiab kev ua haujlwm siab.
2. Cov zis ncej hloov mus rau hauv tapered cov menyuam bearings uas tso cai rau siab axial thiab radial rog. Yog li tuaj yeem muab lub peev xwm ntawm kev kub siab thiab siab torque nyob rau hauv dav ntawm daim ntawv thov.
3. Advanced tsim nyob rau hauv disc faib ntws, uas yuav cia li them nyiaj rau hauv kev khiav hauj lwm nrog siab ntim thiab efficiency thiab lub neej ntev. Qhov no tseem tuaj yeem muab kev ua haujlwm du thiab txhim khu kev qha.
Qhov no series ntawm motors muaj xws li:
B2K Standard / B2KW (lub log tsav) / B2KS (Bearingless) nrog qhov sib txawv loj thiab cov duab ntawm flange thiab ncej. Koj tuaj yeem xaiv cov ncej thiab flange raws li koj xav tau.
Qhov zoo ntawm B2K Orbit Hydraulic Tsav:
B2K Orbit Hydraulic Tsav yog lub tshuab ua haujlwm siab hydraulic uas muaj ntau yam zoo. Ib qho ntawm cov txiaj ntsig tseem ceeb ntawm lub cev muaj zog yog nws cov kav ntev, vim nws tau tsim los tiv thaiv kev siv hnyav thiab hnyav. Qhov no ua rau nws zoo tagnrho rau ntau yam kev siv, los ntawm kev tsim kho thiab kev ua liaj ua teb mus rau kev lag luam thiab marine.
Lwm qhov zoo ntawm B2K Orbit Hydraulic Tsav yog nws qhov ua tau zoo. Lub cev muaj zog no yog tsim los ua haujlwm nrog tsawg zog poob, uas txhais tau hais tias nws tuaj yeem ua tau ntawm kev kub ceev thaum siv roj tsawg lossis hluav taws xob. Qhov no ua rau nws xaiv tus nqi zoo rau cov lag luam nrhiav kev txhim kho lawv cov kab hauv qab thiab txo lawv cov kev cuam tshuam ib puag ncig.
Lub B2K Orbit Hydraulic Tsav kuj muaj kev ua tau zoo thiab muaj peev xwm ua tau zoo, nrog rau ntau yam kev ceev thiab lub zog torque muaj kom haum rau ntau yam kev siv. Qhov no ua rau nws yog qhov kev xaiv nrov ntawm cov neeg cog lus thiab cov neeg ua haujlwm siv tshuab uas xav tau lub tshuab hydraulic uas txhim khu kev qha thiab hloov tau yooj yim uas tuaj yeem ua haujlwm ntau yam haujlwm.
Thaum kawg, B2K Orbit Hydraulic Tsav yog txhawb nqa los ntawm pab pawg txhawb nqa uas muaj kev tshwj xeeb thiab kev pabcuam rau cov neeg siv khoom. Qhov no ua kom ntseeg tau tias cov lag luam tuaj yeem tso siab rau lub cev muaj zog no rau xyoo tom ntej, paub tias txhua yam teeb meem lossis cov lus nug yuav raug daws sai thiab ua haujlwm.
Zuag qhia tag nrho, B2K Orbit Hydraulic Tsav muaj ntau yam zoo rau cov lag luam nrhiav kev ruaj khov, muaj txiaj ntsig, thiab ntau yam hydraulic lub cev muaj zog. Nrog nws cov kev ua tau zoo thiab kev txhawb nqa tshwj xeeb, nws yog kev nqis peev ntse rau txhua lub tuam txhab nrhiav kev txhim kho nws cov haujlwm thiab txhawb nqa nws cov khoom tsim tau.
Cov ntaub ntawv Specification
|
Displ. cm3/r |
80 |
100 |
125 |
160 |
195 |
245 |
305 |
395 |
490 |
|
|
Ntws (LPM) |
Tsis tu ncua |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
|
Sib nrug |
75 |
95 |
95 |
115 |
115 |
115 |
115 |
130 |
115 |
|
|
Ceev (RPM) |
Tsis tu ncua |
799 |
742 |
576 |
477 |
385 |
308 |
246 |
191 |
153 |
|
Sib nrug |
908 |
924 |
720 |
713 |
577 |
462 |
365 |
335 |
230 |
|
|
Siab (bar) |
Tsis tu ncua |
170 |
170 |
170 |
170 |
170 |
170 |
140 |
140 |
120 |
|
Sib nrug |
275 |
275 |
275 |
275 |
240 |
240 |
205 |
170 |
140 |
|
|
Torque (N.m) |
Tsis tu ncua |
195 |
245 |
315 |
380 |
455 |
555 |
560 |
700 |
845 |
|
Sib nrug |
305 |
395 |
550 |
530 |
625 |
765 |
805 |
890 |
930 |
|

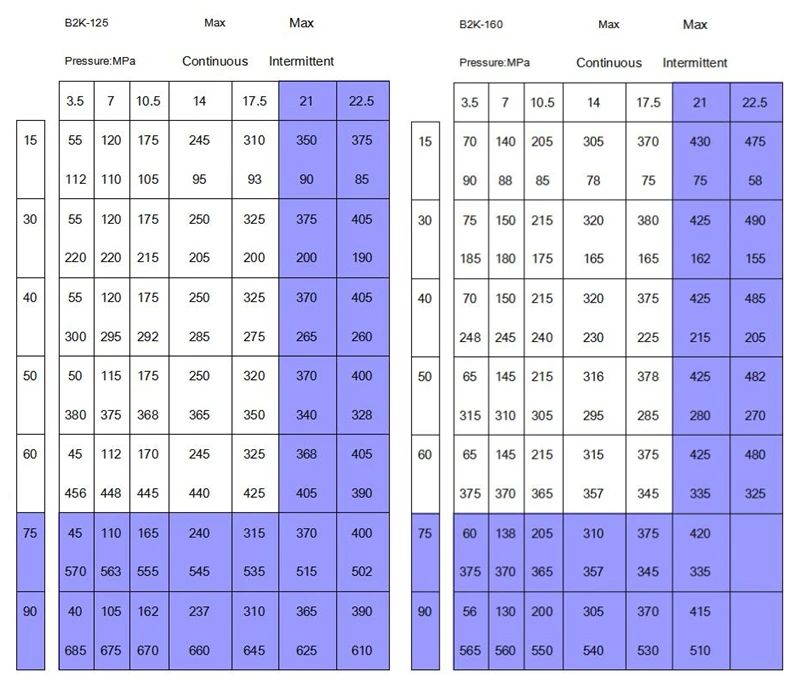

Cov ntaub ntawv ua haujlwm
Qhov ntev
flange thiab Pilot Dia
Dimensions ntawm Ncej
Dimensions ntawm roj chaw nres nkoj

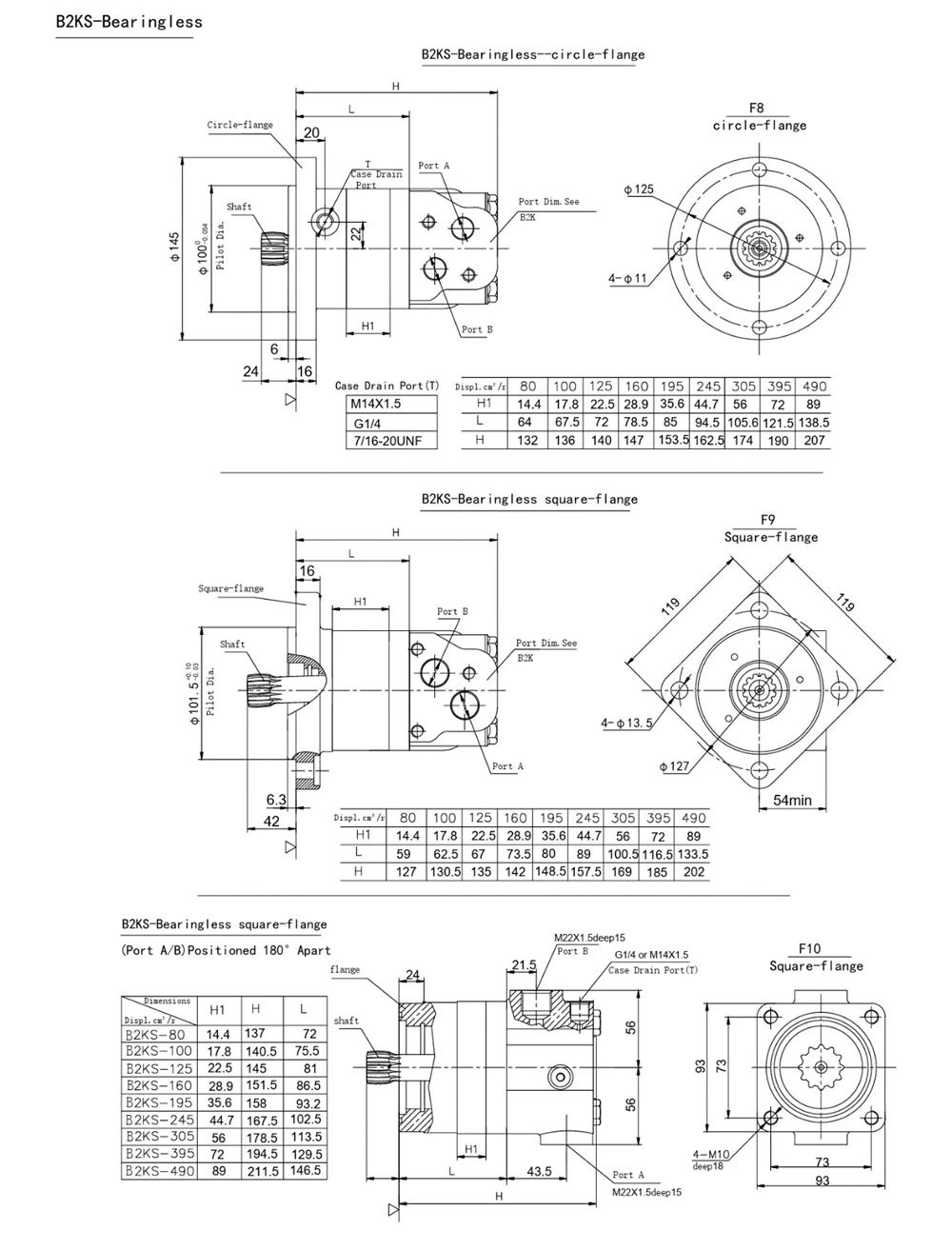

B2KS-Bearingless
Cov ntaub ntawv xaj: B2k (BMS)
|
1 |
|
2 |
|
3 |
|
4 |
|
5 |
|
6 |
|
7 |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|||||
|
Code |
Displ.(CC/r) |
Flange |
Output Ncej |
Chaw nres nkoj thiab Drain Port |
Kev sib hloov Kev taw qhia |
Xim |
|||||
|
B2K B2 KW B2 KS |
F1 |
4 Bolt flange (Standard) tsav φ82.5 |
A1 |
Splined 6D-30x26x8 |
P1 |
G1/2 G1/4 Manifold Mount 2-M10 |
R |
Txuj |
N |
Tsis muaj xim |
|
|
80 |
F2 |
2 Bolt flange (Standard) tsav φ82.5 |
A2 |
Cylindrical ncej φ32 Parallel 10x8x45 |
P2 |
M22x1.5 M14x1.5 Manifold Mount 2-M10 |
Q |
Xiav |
|||
|
100 |
F3 |
6 Bolt Rhomb-flange (Standard) pilotφ82.5 |
A3 |
Cylindrical ncej φ25 Parallel key 8x7x28 |
P3 |
7/8-14unf O-ring 7/16-20unf Manifold Mount 2-M10 |
|||||
|
125 |
F4 |
2 Bolt Rhomb-flange (Standard) pilot φ70 |
A4 |
shaftφ25.4 Parallel tseem ceeb 6.35x6.35x32 |
P4 |
NPTF1/2 7/16-20unf Manifold Mount 2-M10 |
|||||
|
160 |
F5 |
4-φ13 Square-flange, tsav φ100 |
A5 |
ncej φ31.75, Parallel tseem ceeb 7.96x7.96x31.75 |
P5 |
M22x1.5 M14x1.5 Manifold Mount 3-M10 |
|||||
|
P6 |
G1/2 G1/4 Manifold Mount 3-M10 |
||||||||||
|
195 |
F6 |
4-φ11.5 Square-flange, tsav φ82.55 |
A6 |
Splined 14-DP12/24 ANSI B92.1P5 |
L |
Tawm tsam |
B |
Dub |
|||
|
245 |
F7 |
4-φ13.5 log-flange, tsav φ107.9 |
A7 |
Splined SAE 6B 6D-25.3x21.3x6.2 |
P7 |
M22x1.5 M10x1 Manifold Mount 3-M10 |
|||||
|
A8 |
ncej φ25.4 Woodruff keyφ25.4x6.35 |
P8 |
M20x1.5 M14x1.5 Manifold Mount 3-M10 |
||||||||
|
S |
Nyiaj grey |
||||||||||
|
A9 |
Cylindrical ncej φ25.4 Parallel 8x7x28 |
||||||||||
|
A10 |
Cylindrical ncej φ30 Parallel key 10x8x45 |
P9 |
NPTF1/2 G1/4 Manifold Mount 3-M10 |
||||||||
|
305 |
F8 |
(Bearingless) lub voj voog-flange, tus tsav φ100 |
A11 |
Cone-shaft φ35 Parallel tseem ceeb 6x6x20 |
|||||||
|
395 |
F9 |
(Bearingless) Square-flange, tsav φ101.5 |
A12 |
Splined 13-DP16/32 |
P10 |
2-φ{1}} 4375-20UNF Manifold Mount 3-M10 |
|||||
|
400 |
F10 |
(Bearingless) 4-M10 Square-flange |
A13 |
Splined 6D-30x26x6 AXIS DISTANCE 48 |
P11 |
2-φ13 M14x1.5 Manifold Mount 3-M10 |
|||||
|
A14 |
Splined 6D-30x26x6 AXIS DISTANCE 57 |
P12 |
7/8-14unf O-ring 7/16-20unf Manifold Mount 3-M10 |
||||||||
|
A15 |
Splined 6D-30x26x6 AXIS DISTANCE 44.5 |
P13 |
2-φ33.2 M14x1.5 Manifold Mount 8-M10 |
||||||||
|
A16 |
Cone-ncej φ31.75 Parallel tseem ceeb 7.96x7.96x31.75 |
||||||||||
|
A17 |
Bearingless 12-DP12/24 |
||||||||||
Lus Cim: Thaum lub rooj siv, thov sau cov lej ntawm cov kab laug sab hauv qhov chaw khiav ceev thiab muab rau peb, uas cov ntaub ntawv code yog muaj kev tsim kho, hloov chaw, mounting flange. tso zis ncej thiab ports. Yog tias qhov kev qhia tshwj xeeb tsis nyob hauv lub rooj lossis koj muaj cov cai tshwj xeeb, thov hu rau peb (whatsapp+8615106778662).
FAQ
Q: Hnub xa khoom yog dab tsi tom qab kev txiav txim tso?
Q: Yog tias cov khoom tsis ua raws li qhov yuav tsum tau ua, yuav daws qhov teeb meem li cas?
Q: Yuav ua li cas xam torque?
Torque (Nm) {{0}} Tawm (cc/rev) x Ua Haujlwm Siab (MPa) x 0.16 (Factor)
Raws li kev ua haujlwm theorem: Vm (ml per radian) × w (radian ib thib ob) × p (MPa, qhov sib txawv siab) × (tag nrho hydraulic motor efficiency) {{0}}} w (radian ib thib ob) × T (Nm); yog li T =Vm×P×η; qhov twg milliliter ib radian ntawm Vm hloov mus rau milliliter ib kiv puag ncig thiab yuav tsum tau muab faib los ntawm 2π, uas yog multiplied los ntawm 0.16.
Qhov kev hloov pauv tuaj yeem pom los ntawm cov khoom lag luam. Kev ua haujlwm siab nyob ntawm qhov ntsuas siab ntawm qhov nkag ntawm lub orbit hydraulic lub cev muaj zog. Paub txog ob qhov tseem ceeb no, koj tuaj yeem suav cov zis torque ntawm lub orbit hydraulic lub cev nyob rau lub sijhawm no.
Q: Dab tsi ntawm Motor Circuit Court muaj?
